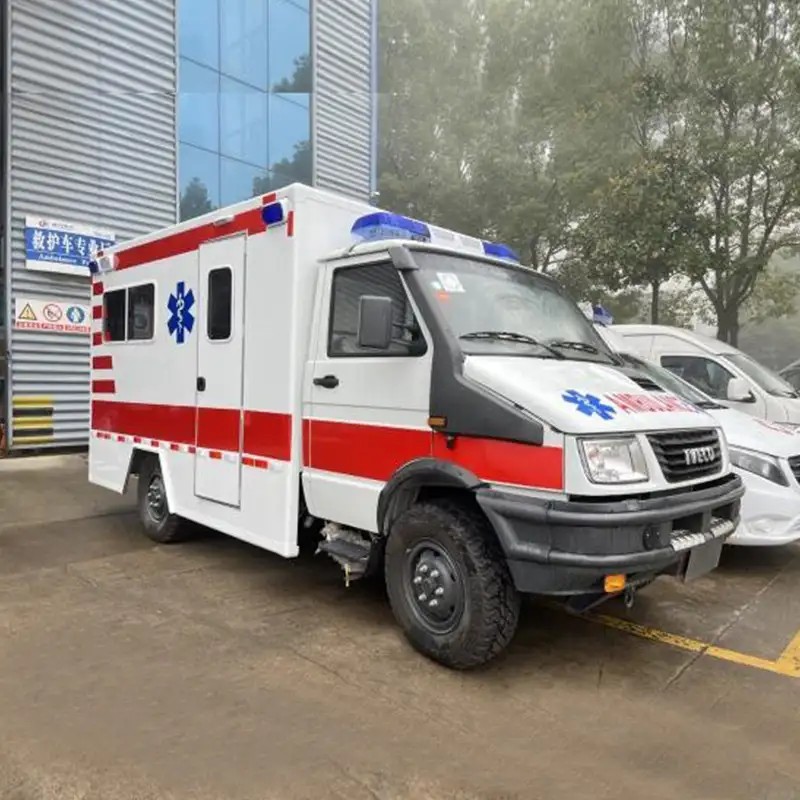

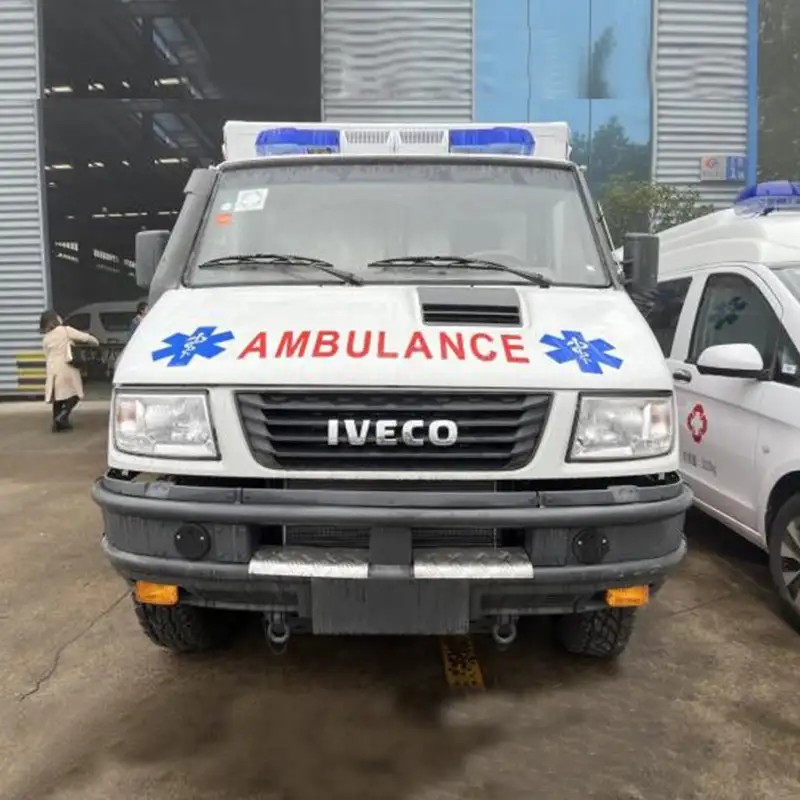

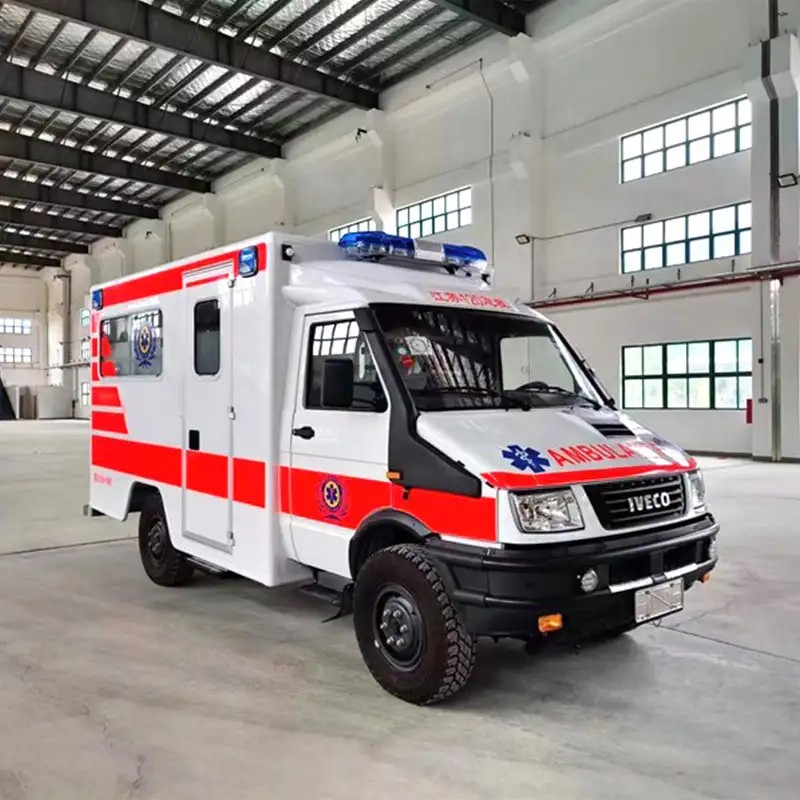

What are the engine specifications and chassis brand of this 4x4 ambulance?

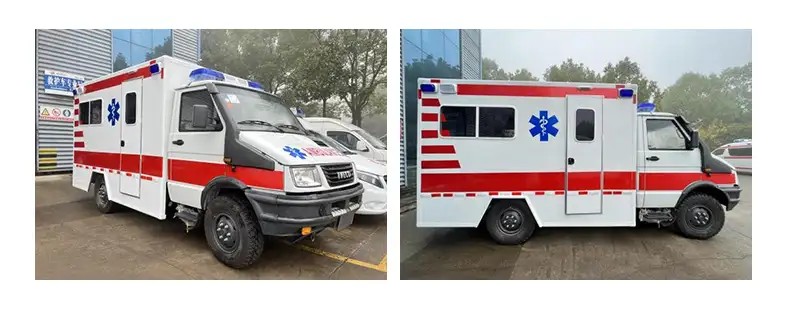

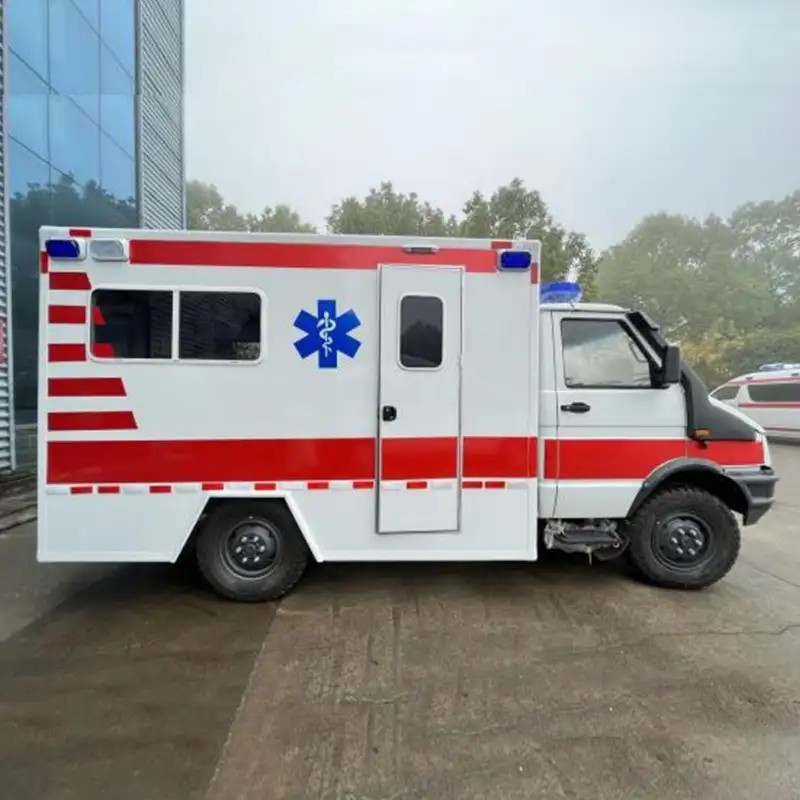

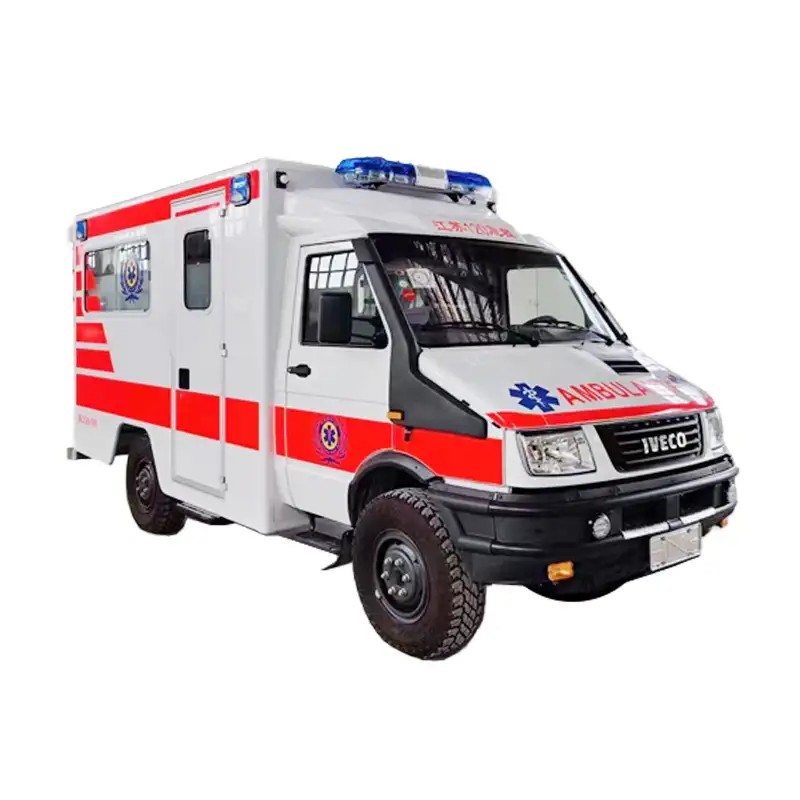

This ambulance is built on an Iveco chassis featuring a 4x4 drive system. It is powered by a SOFIM8140.43S6 diesel engine with a displacement of 2798 ml and a maximum power of 95 Kw, meeting the Euro 5 emission standard. It is equipped with a five-speed manual transmission.
What are the physical dimensions of the vehicle and the medical cabin?
The overall dimensions of the vehicle are 5900 x 2000 x 2700 mm. The interior dimensions of the medical cabin are 3500 × 2000 × 1500 mm, providing ample space for patient treatment and medical equipment layout.
What configuration models of this ambulance truck are available?

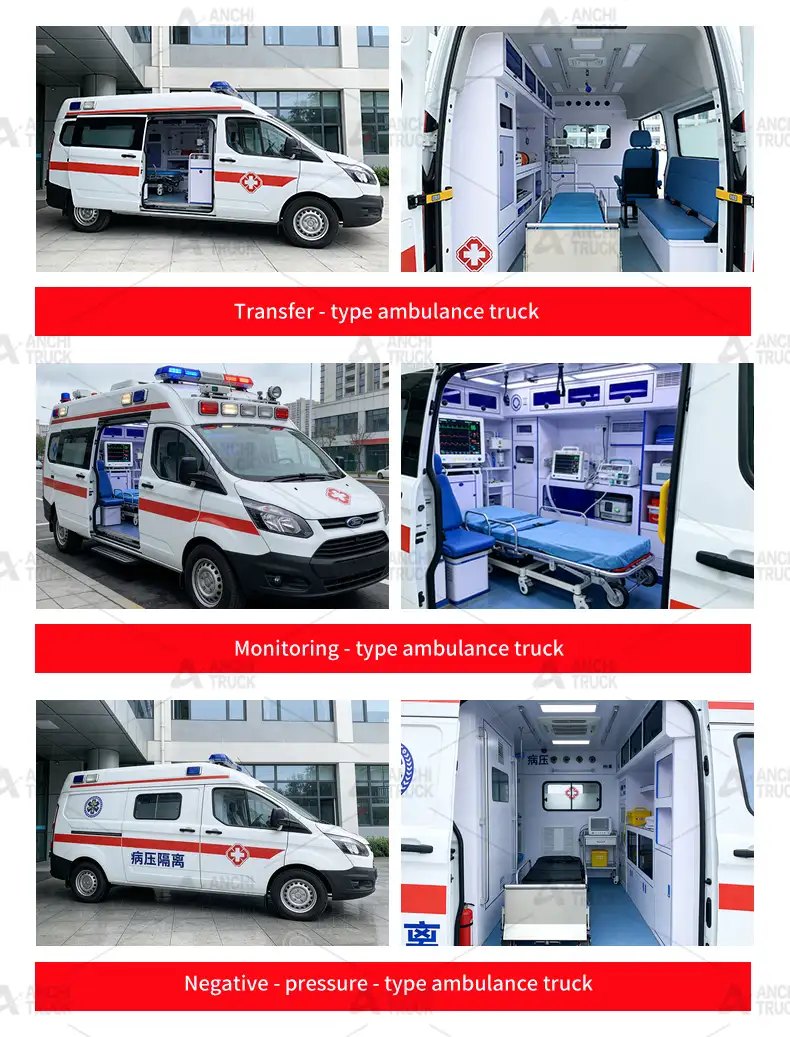

You can select from three different models based on medical requirements:
1. Transfer-type: Designed with basic medical equipment for ordinary patients.
2. Monitoring-type: Outfitted with a complete emergency first-aid kit and a negative-pressure cabin.
3. Negative-pressure-type: Featuring an isolation system specifically to prevent the transmission of infectious diseases.

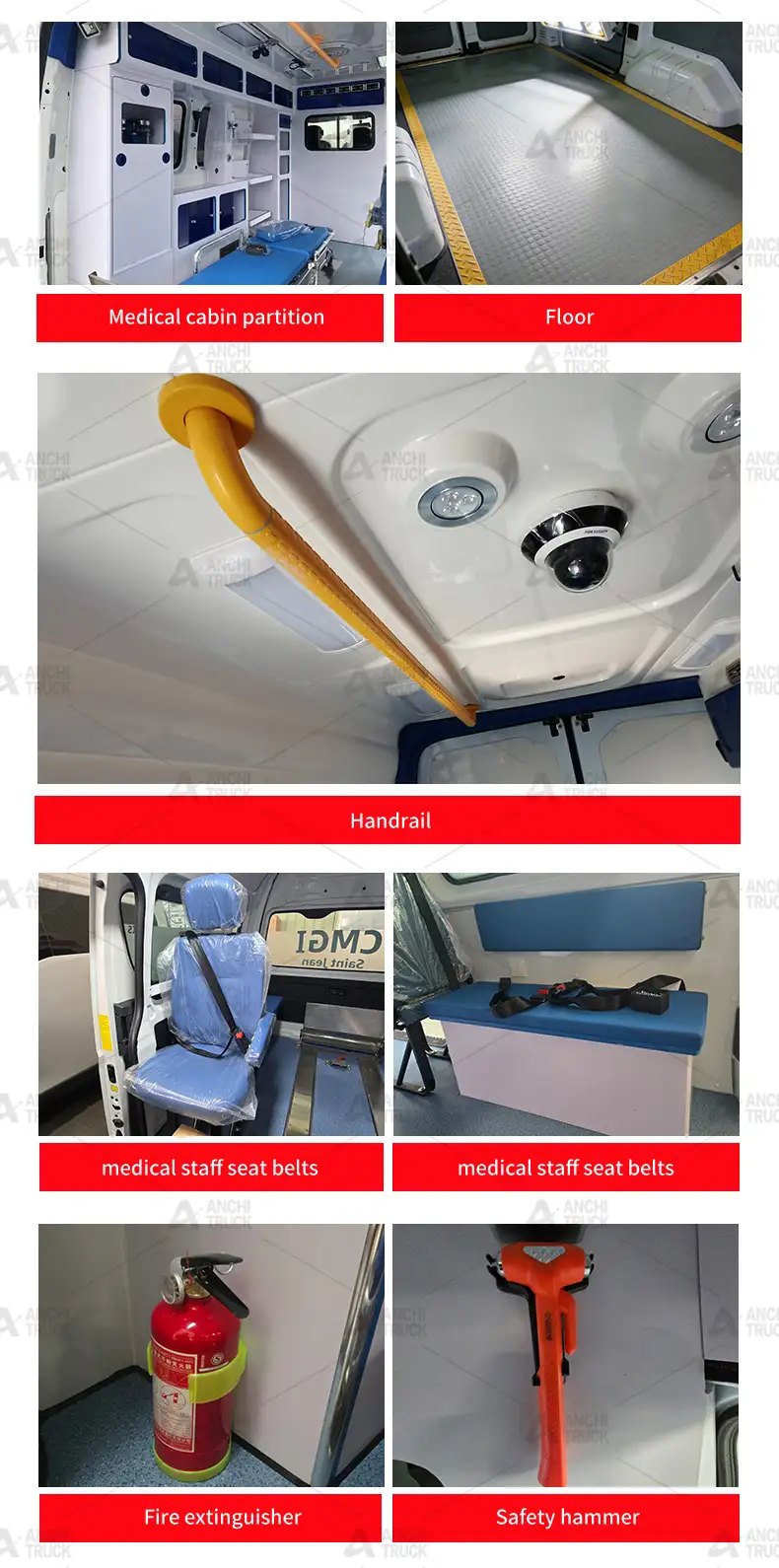

What safety measures are integrated into the basic configuration of the medical cabin?
The medical cabin partition is built with antibacterial and fire-resistant materials. The floor is fitted with anti-slip, antibacterial medical leather. For physical safety, it includes antibacterial handrails, seat belts for medical staff, a fire extinguisher, and a safety hammer.

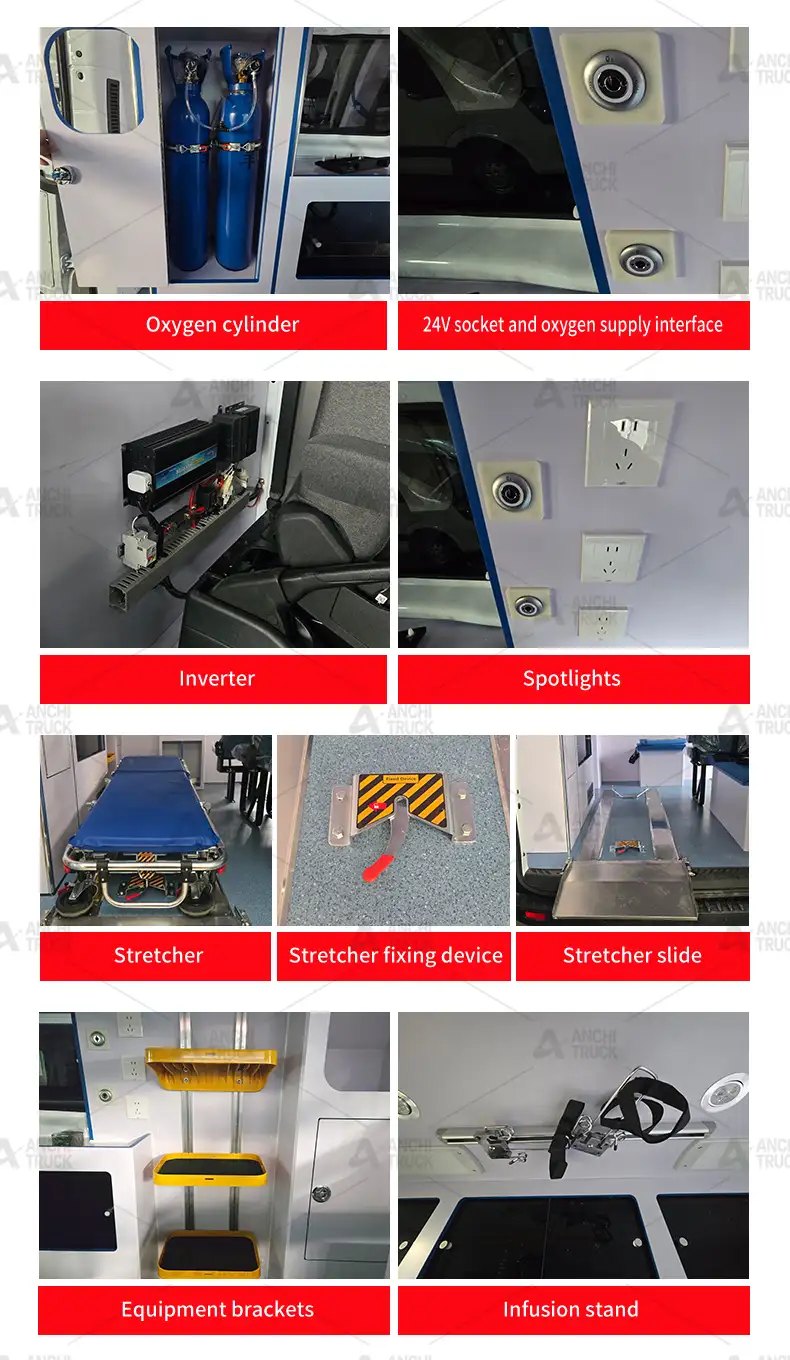

What core medical equipment comes standard with this vehicle?
The standard configuration includes two 10L oxygen cylinders, dual-use 24V sockets, an inverter, spotlights, an adjustable automatic stretcher with a fixing device and slide, special brackets for equipment (monitors/defibrillators/ventilators), and an adjustable infusion stand.

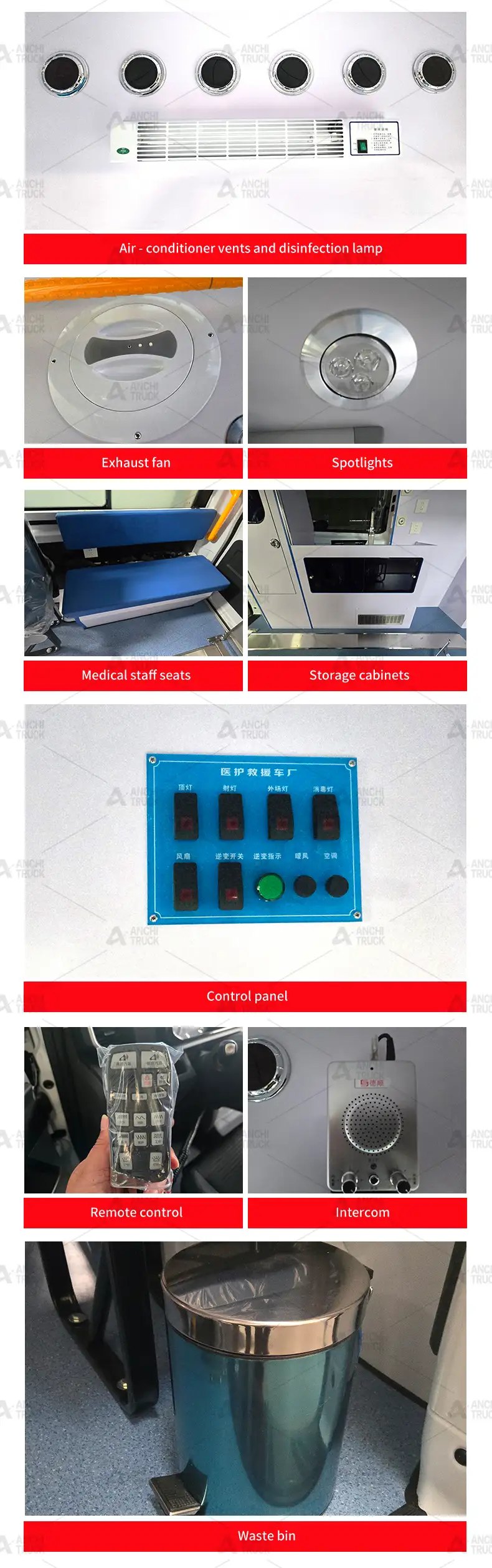

How is the comfort and convenience optimized inside the medical cabin?

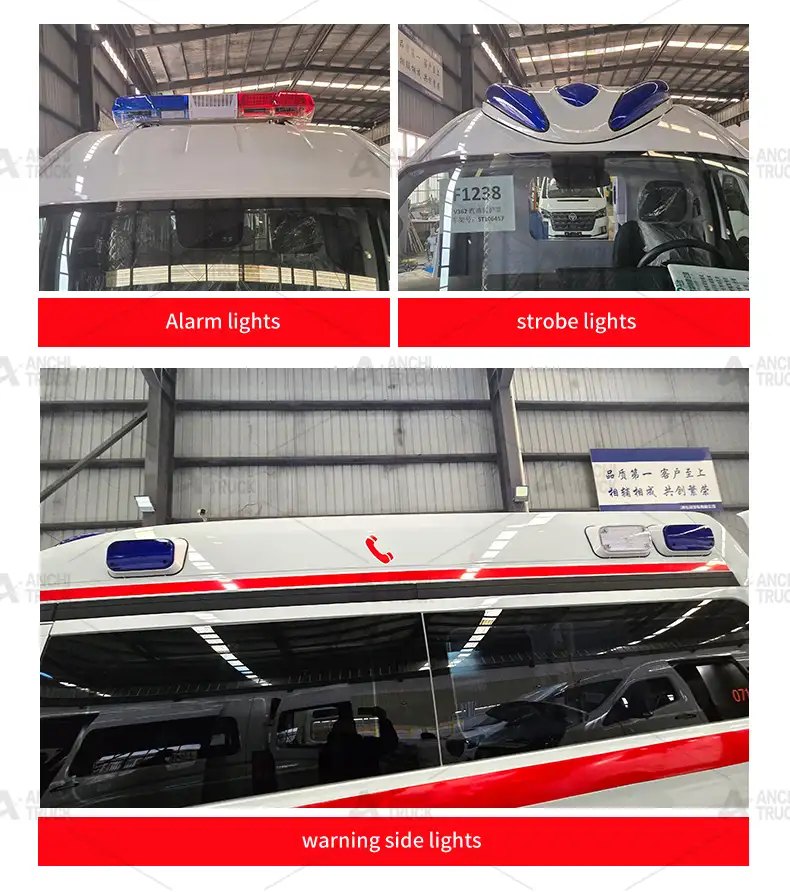

Comfort and functionality are supported by built-in air-conditioner vents, a cabin disinfection lamp, an exhaust fan, medical staff seats, storage cabinets, a centralised control panel, an intercom system, warning side lights, strobe lights, and a remote control system.
