Toyo Drive
Toyo Drive
| Item | Technical parameters | Specifications |
|---|---|---|
| 1 | wheelbase (mm)： | 3320 |
| 2 | Drive form | 4×4 off road drive |
| 3 | Overall dimensions (mm)： | 5495×2032×2800 |
| 4 | Complete vehicle curb mass:(kg)： | 2560 |
| 5 | GVW (kg)： | 4500 |
| 6 | Min. Ground clearance (mm)： | 260 |
| 7 | Min. Turning radius (mm)： | 7850 |
| 8 | Fuel tank | 110 L |
| 9 | Engine： | Four-cylinder high pressure common rail supercharged and intercooled |
| 10 | Fuel type: | Diesel |
| 11 | Emission standard： | EURO III ,EURO V |
| 12 | Maximum power (kw)： | 170 HP |
| 13 | displacement | 2.0T |
| 14 | torque | 385N |
| 15 | Clutch: | single plate, dry type, diaphragm spring |
| 16 | Transmission: | Automatic transmission, 5MT or 8 MT |
| 17 | Front overhang/ Rear overhang: | 980/1155 (mm) |
| 18 | Front wheel tread/ Rear wheel tread: | 1740/1708 |
| 19 | Brake system: | Front disc rear drum brake |
| 20 | Max. speed (Km/h)： | 130 |
| 21 | Other equipments | Back monitor, Emergency buzzer, Driver air bag restraint system, Front / Rear coolers, Powered rear vision mirror, Central locking system, Reverse Sensor, ABS, USB, Emergency buzzer Power Windows |
| 22 | Steering system： | power-assisted steering |
| 23 | Tire: | 195/70R16, one spare tire |
| SPEC. of Medical cabin configuration | ||
| Parts | No. / Project | QTY / Remark |
| Appearance | 1. Front roof tiger alarm lamp | 1 |
| 2. One group of dual module flash lamps on the left and right sides | 1 | |
| 3. 100W electric siren and PA system | 1 | |
| 4. Left black privacy film | 1 | |
| 5. Right and rear white matte film | 1 | |
| 6. One red cross sign on the left and right doors | 1 | |
| 7. 1 Red Cross sign on the front cover | 1 | |
| 8. Rear tailgate 2 cross marks | 1 | |
| Electrical system | 9. Intelligent power management security system | 1 |
| 10. Front and rear intercom system | 1 | |
| 11. 1000W pure wave inverter system | 1 | |
| 12. Vehicle standard integrated low voltage harness | 1 (Special standard harness, professional embodiment) | |
| 13. Hull piano key switch | 1 (Million level safety test, reliable safety) | |
| 14. Top LED lighting | 2 | |
| 15. Disinfection lamp | 1 (Long strip ultraviolet sterilization lamp) | |
| 16. 220V Outlet | 3 (Power supply for automobile special equipment applicable to national standard) | |
| 17. 12V Outlet | 1 | |
| Comfort configuration | 18. High power direct exhaust air conditioner | 1 (Independent cooling and heating system of medical cabin, independent control of cooling and heating) |
| 19. High power heating | 1 | |
| 20. Sealing partition between medical cabin and cockpit | 1 | |
| 21. European long strip sliding window (Partition between driver and patients cab with sliding window) | 1 (Wider field of vision, easy to observe before and after) | |
| 22. Original interior decoration of medical cabin | 1 | |

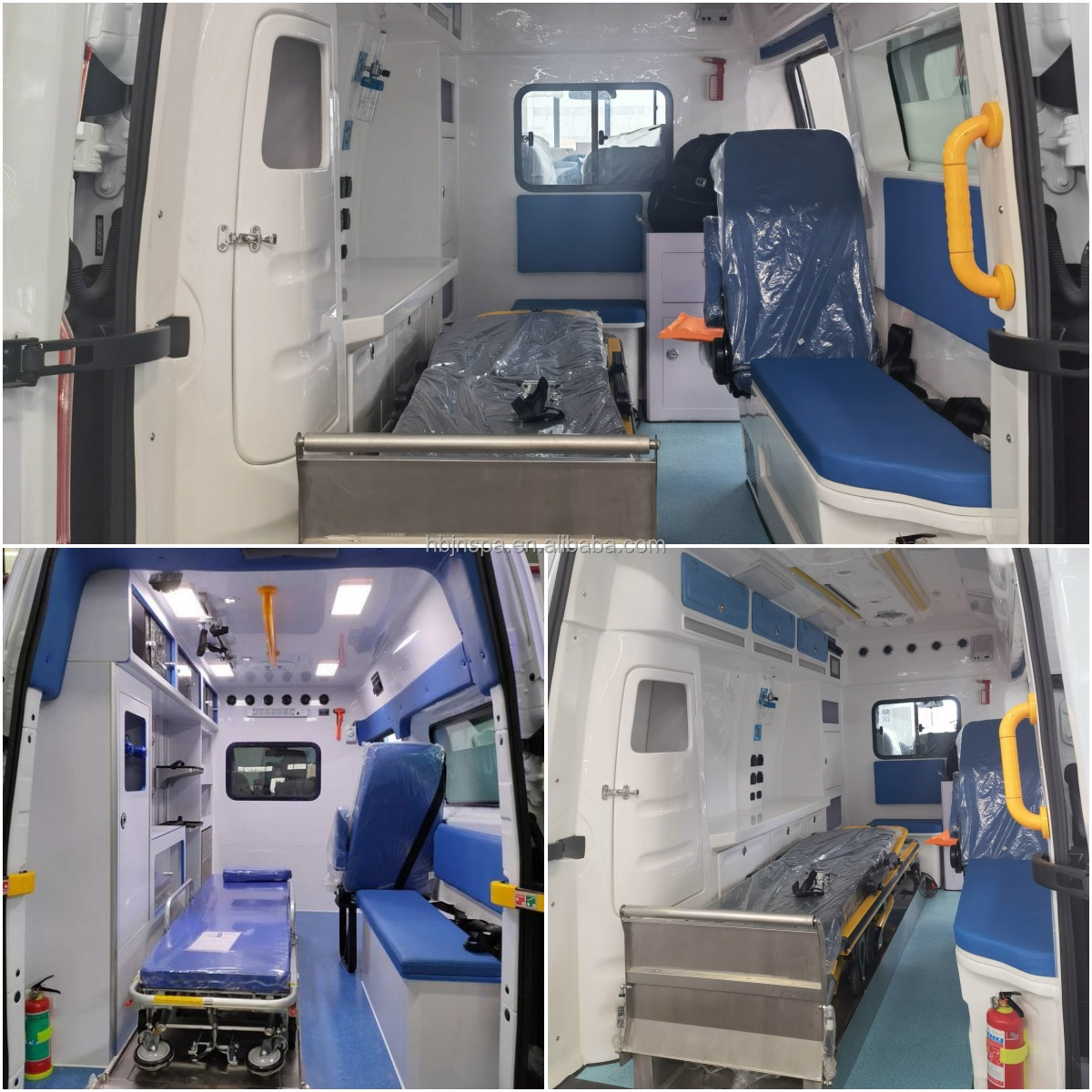

| Medical | 23. Medical compartment installation (Left top Walker board medical long cabinet, Left center Walker board medical equipment cabinet, Left rear side Walker panel vertical oxygen tank, Full blue anti-collision wall) | 1 (PVC material is flame retardant, waterproof and easy to clean) |
| 24. Double 10L oxygen cabinet | 1 (PVC material is flame retardant, waterproof and easy to clean) | |
| 25. Forward independent doctor care seat | 1 (3 Point seat belt) | |
| 26. Right double bench seat | 1 (2 Point seat belt) | |
| 27. Damp proof backing plate and wear-resistant medical floor | 1 (Anti slip, waterproof, mildew proof, antibacterial and easy to clean) | |
| 28. Safety reinforcement embedded in the vehicle | 1 (Inner wall reinforcement and anti-collision treatment) | |
| 29. Infusion hanger | 1 | |
| Oxygen system | 30. 10L medical oxygen bottle | 2 |
| 31. High flow pressure reducing valve | 2 | |
| 32. Medical hyperbaric oxygen tube | 1 (Hide installation) | |
| 33. National standard oxygen port and hidden fixed support | 2 | |
| 34. Flow humidification bottle | 1 | |
| 35. Ventilator adapter | 1 | |
| Medical assistance | 36. Head Immobilizer, Scoop Stretcher, Automatic boarding stretcher | 1 |
| 37. Stainless steel stretcher Guide | 1 (The gas spring supports for 10000 times without shaking and abnormal sound) | |
| Other auxiliary | 38. Fire Extinguisher, 2 kg | 1 |
| 39. Trash can, jack, wheel spanner, tools | 1 | |
| 40. Safety hammer | 1 | |
