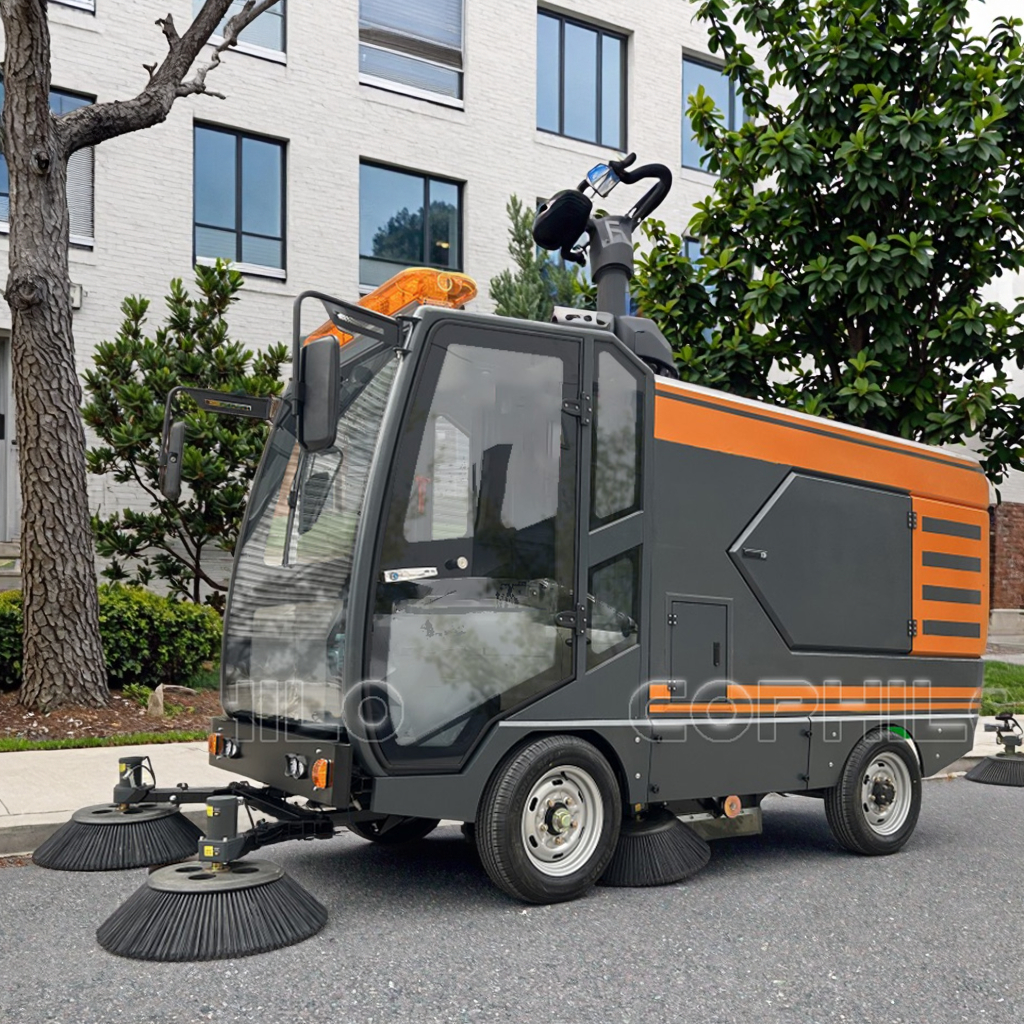

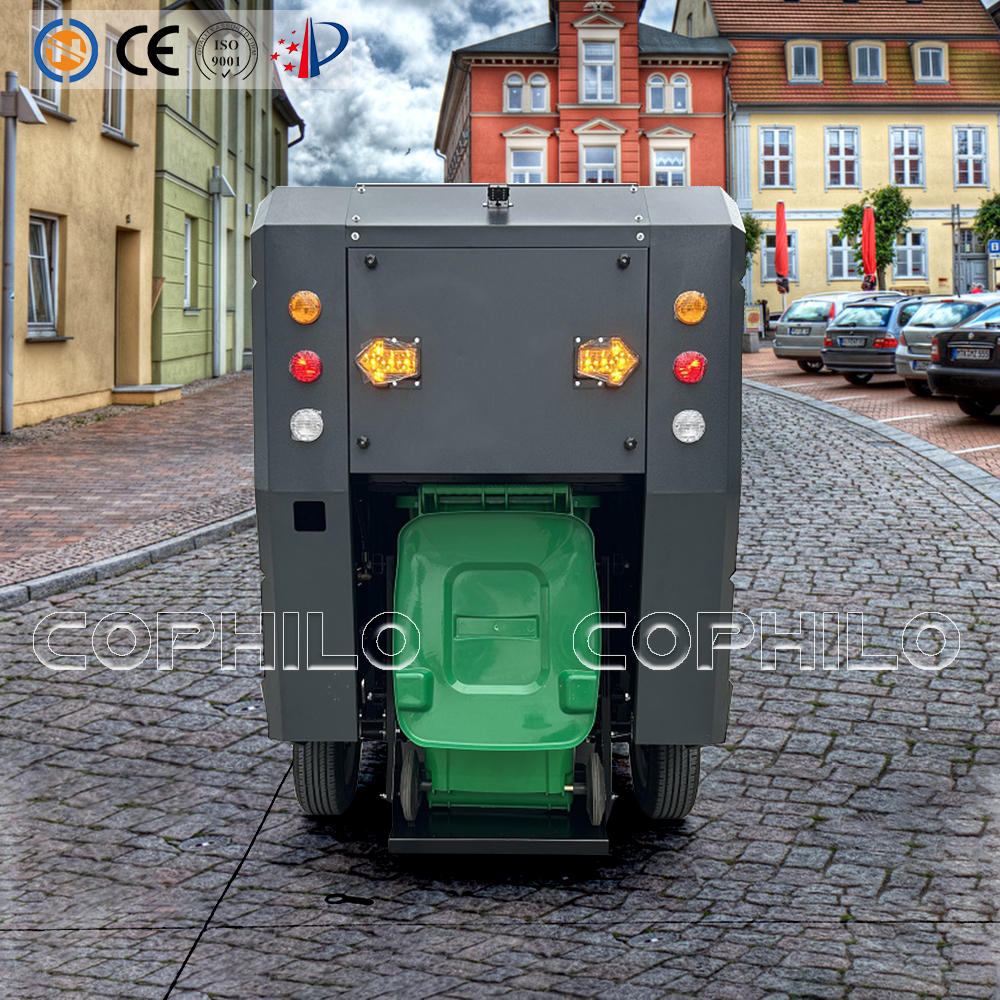

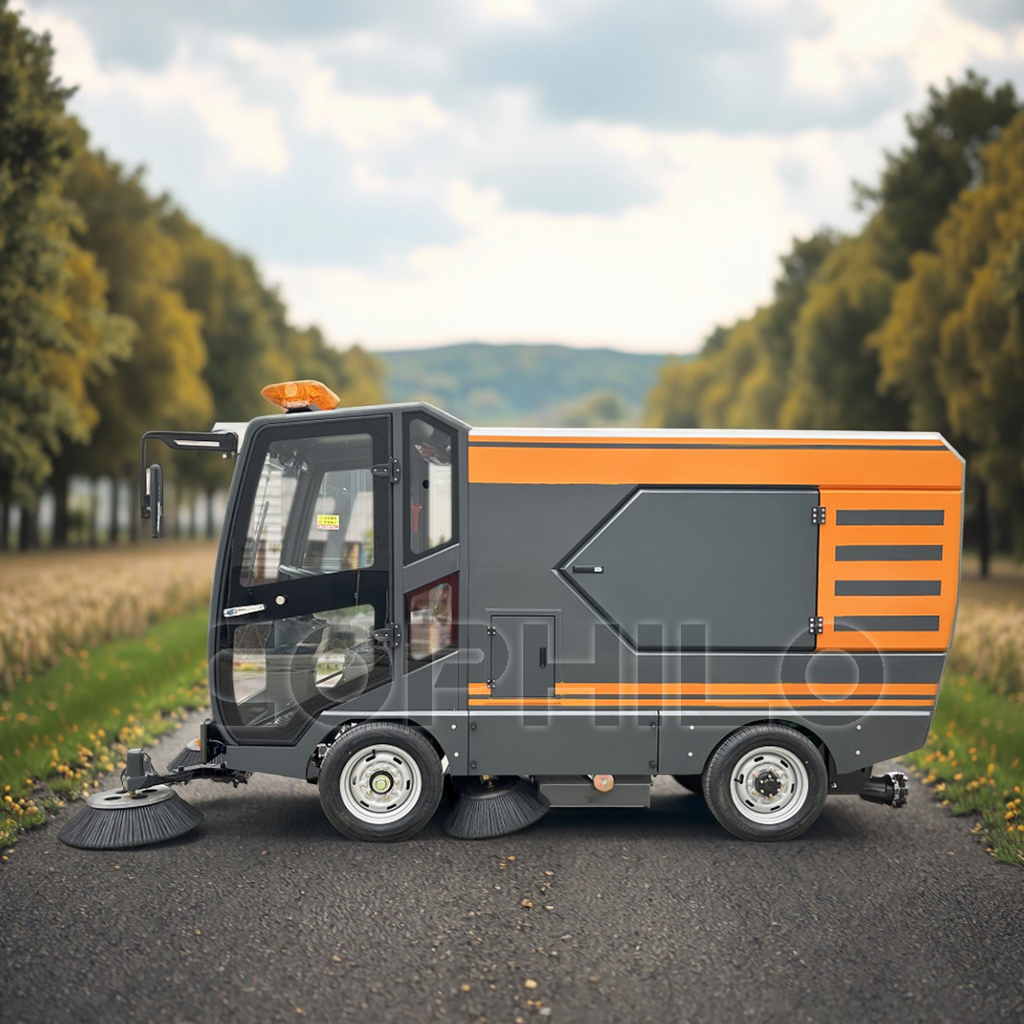

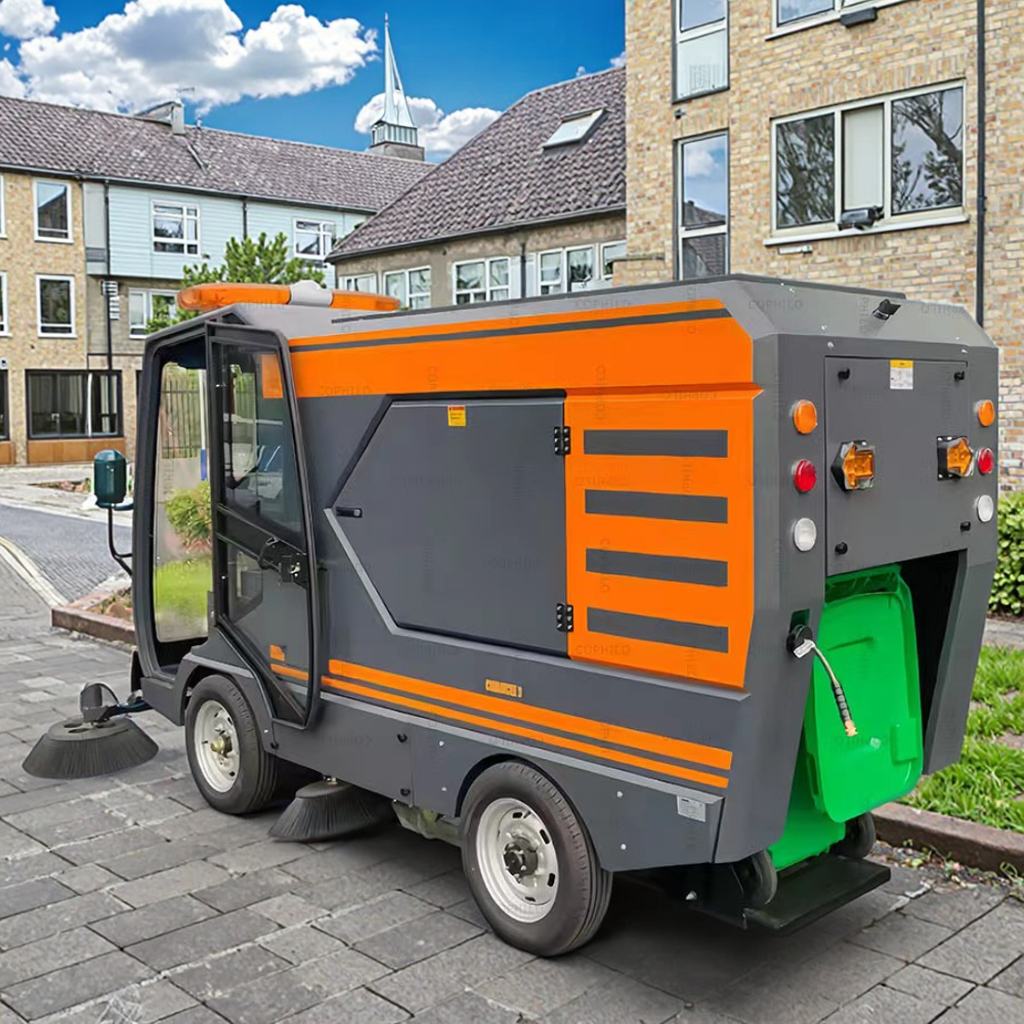

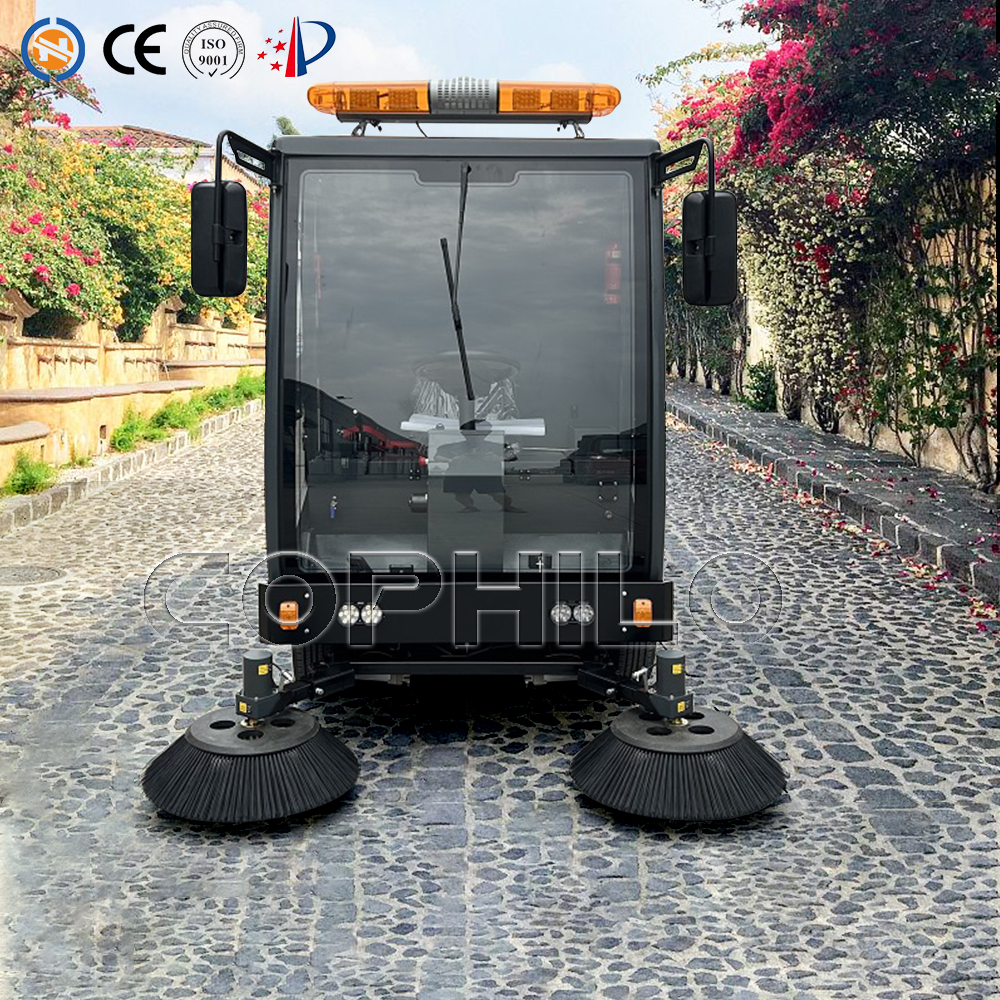

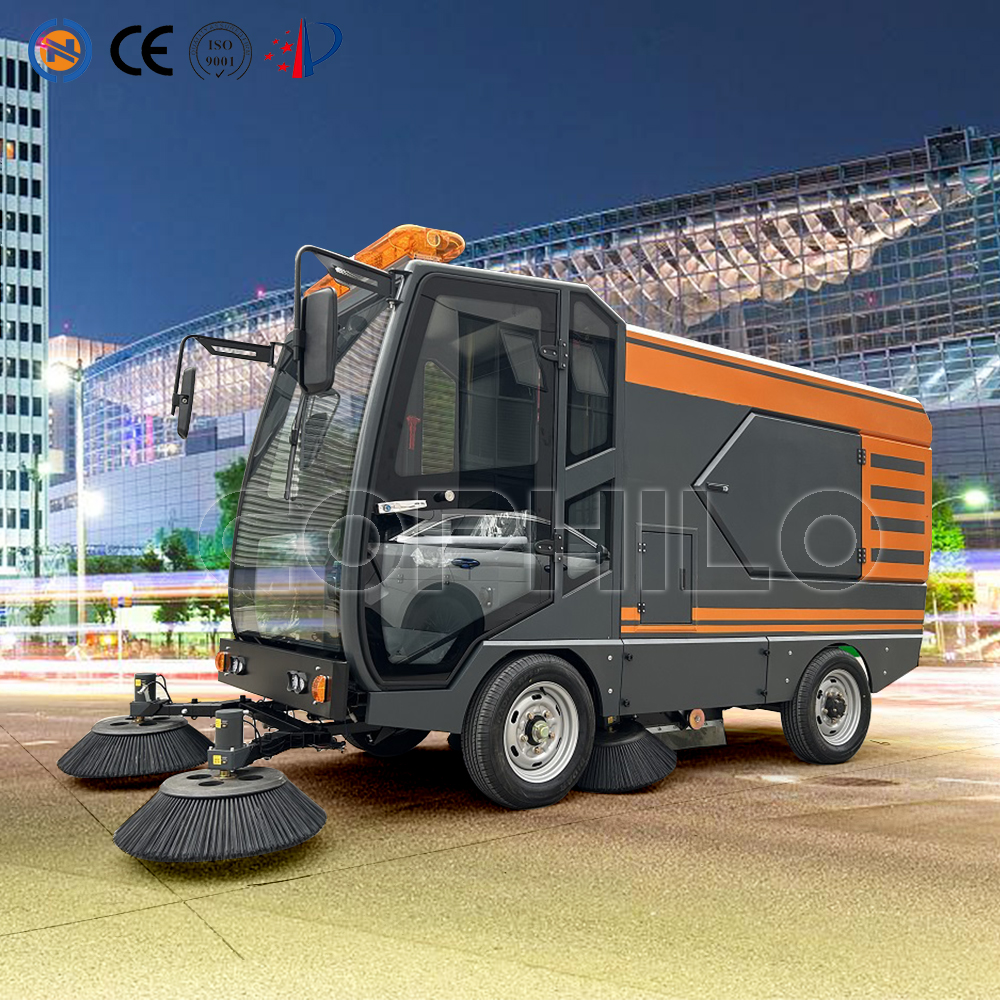

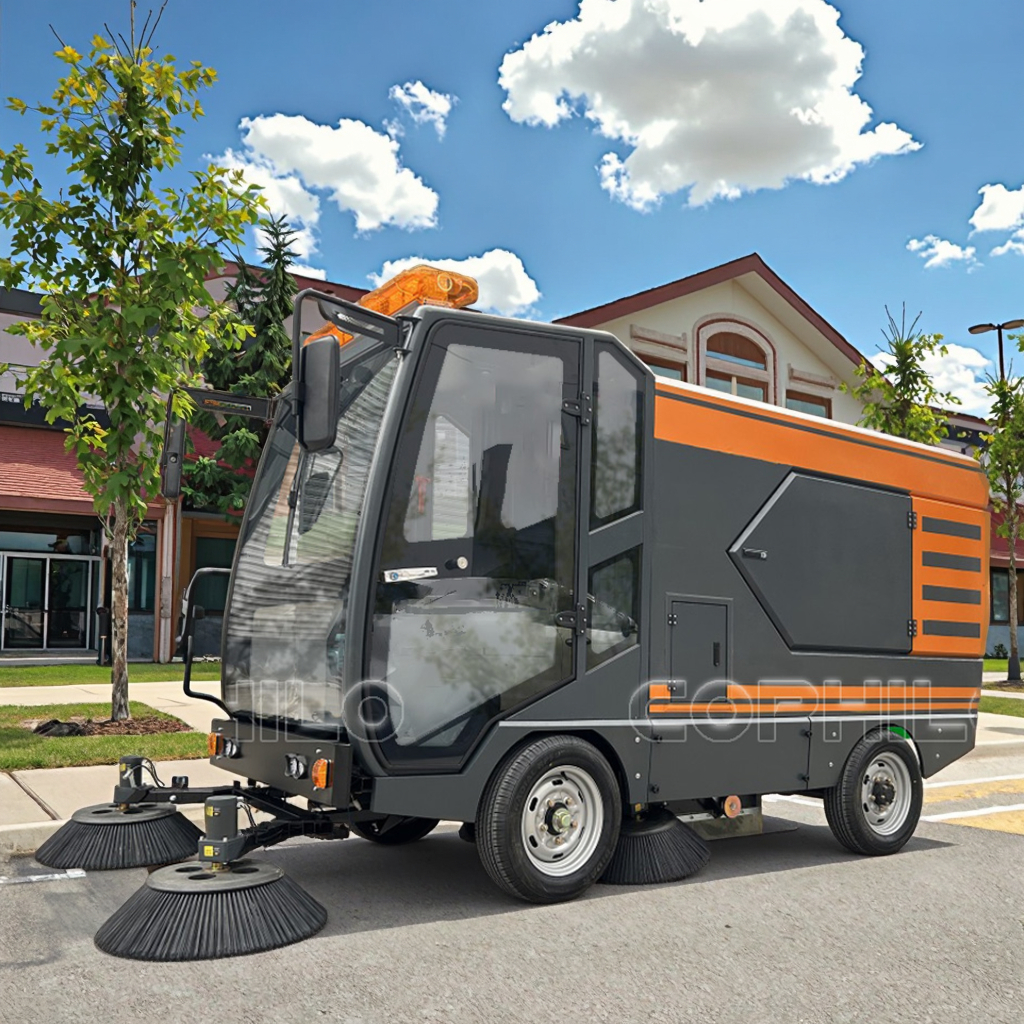

The dustbin of the C220-T four wheels bucket hanging style floor sweeper can be replaced quickly. The cleaning width can be adjusted quickly based on different application scenes. The sweeper can be used on streets, plants, schools, hospitals, institutions units, etc.
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1. | Cleaning Width | mm | 1900~2200 (Adjustable) |
| 2. | Max operating speed | km/h | 7 |
| 3. | Max forward speed | km/h | 25 |
| 4. | Max work productivity | ㎡/h | 20000 |
| 5. | Dustbin capacity | L | 240 (Garbage can) |
| 6. | Water tank capacity | L | 240 |
| 7. | Power voltage | V | 48 |
| 8. | Operation duration | h | 6~8 |
| 9. | Gradeability | % | 30 |
| 10. | Turning radius | mm | 2000 |
| 11. | Drive motor power | w | 5000 (Alternating current) |
| 12. | Suction fan power | w | 500*2 |
| 13. | Main brush motor power | w | 800*2 |
| 14. | Side brush motor power | w | 120*4 |
| 15. | Vibrating motor power | w | 80*2 |

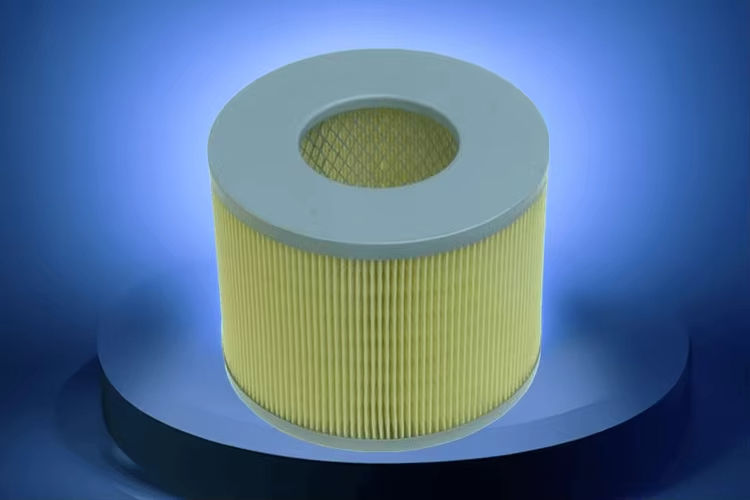

| 16. | Filtering area | ㎡ | 8*2 |
| 17. | Dimensions | mm | 3950*2050*2000 |
| 18. | Main brush length | mm | 700 |
| 19. | Side brush length | mm | 700*2 + 600*2 |
| 20. | Net Weight | kg | 1580 |
Adopt 48V maintenance-free storage battery as power. Its special sealing mechanism can avoid dehydration and dilatant. So it won't seepage and eco-friendly. The maintenance is easy and convenient.
The motor advantages: long service life, stable function, precise speed regulation, large speed regulation ratio, strong output characteristics, smooth operation.
Adopt car level premium electric control system, overcurrent protection and undervoltage protection, more safe.
The sweeper wiring system meets the TS16949 standard, ensuring reliable power supply. All key connectors are flame retardant and waterproof.
Standard configuration of APEC active power-factor correction charger.

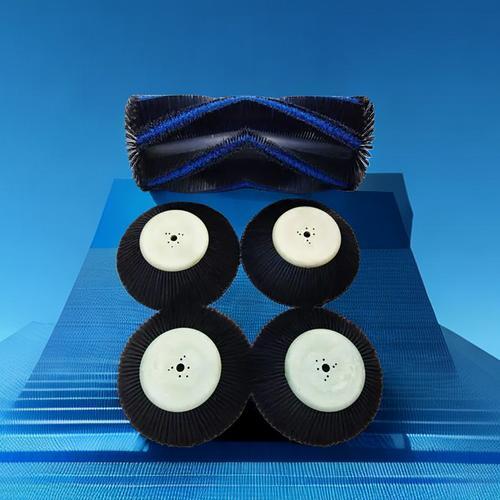

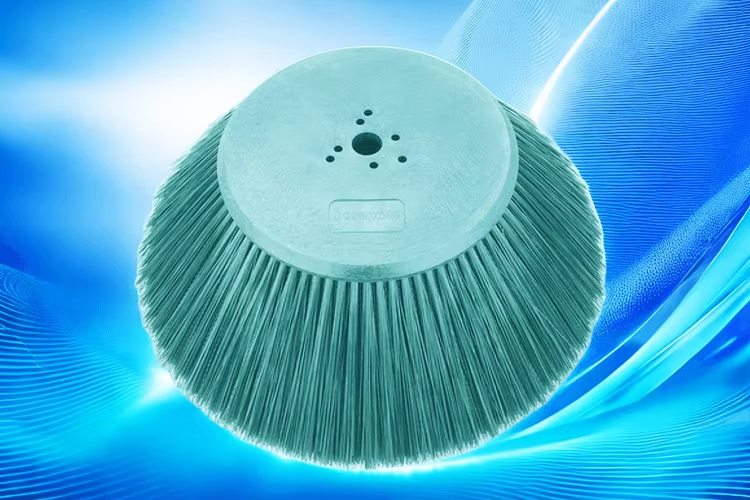

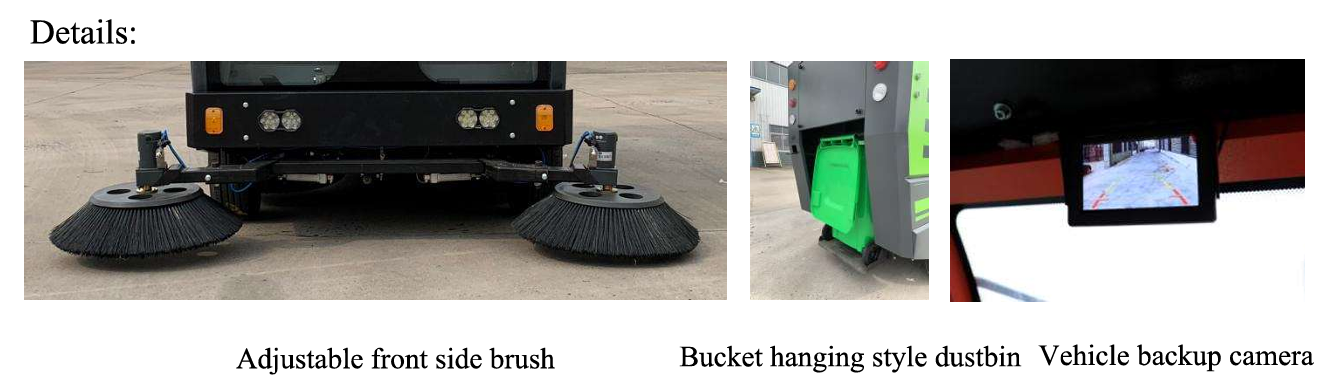

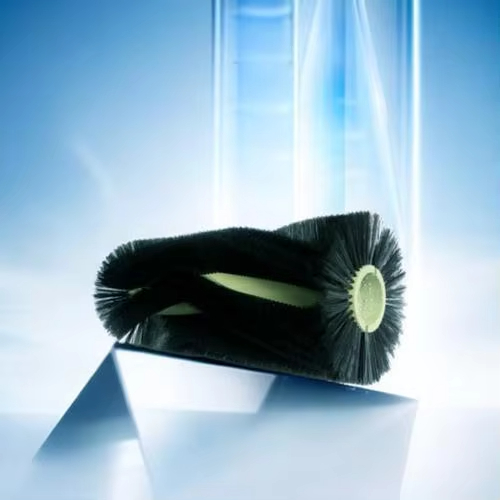

Configuration of preposition adjustable double side brush, center double side brush and rolling brush. Cleaning width is 1.9-2.2 meters, suitable for large area cleaning and high work efficiency.

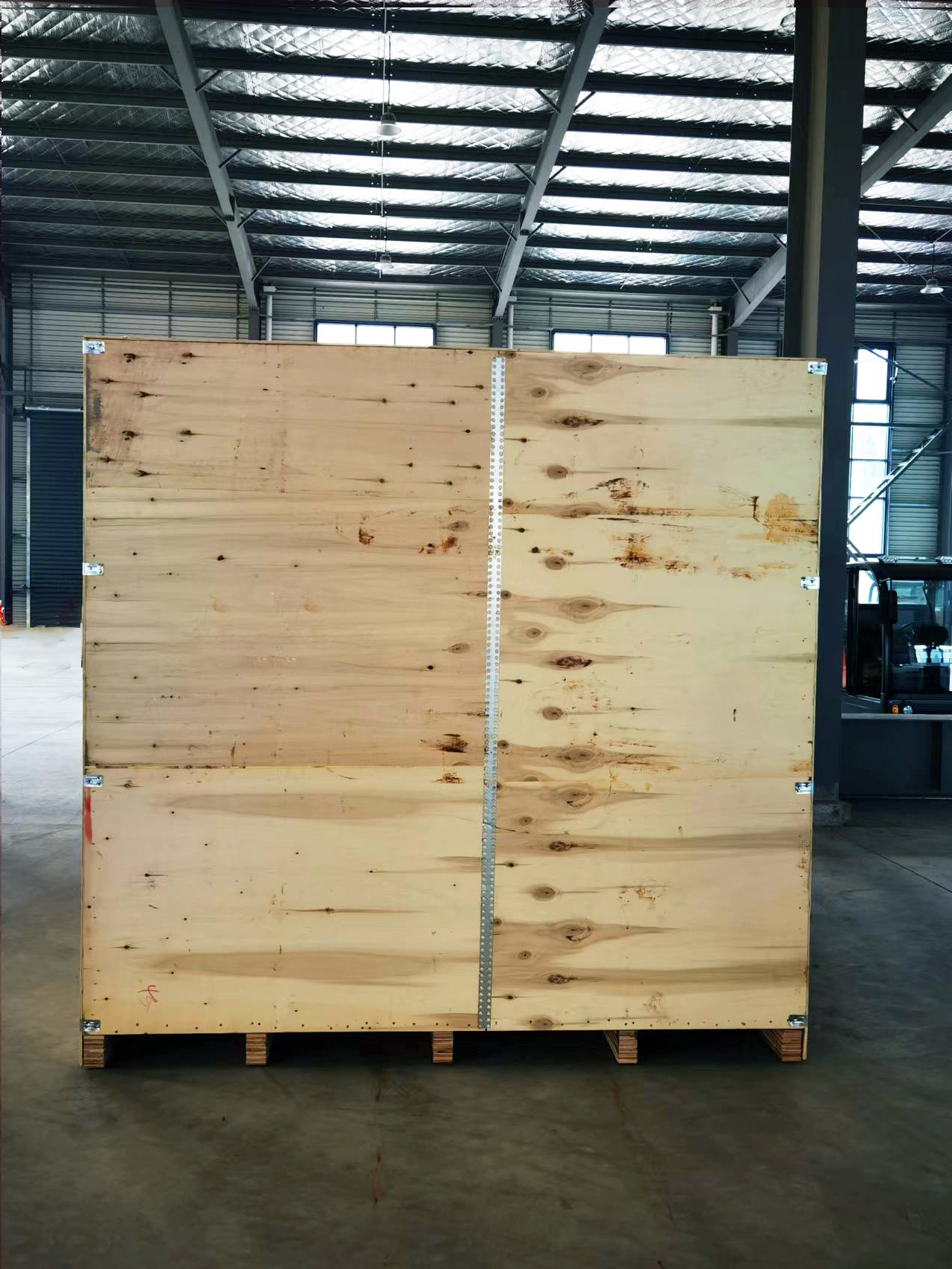

The machine is normally packed in an iron pallet and wrapped by film. But it can also be packed in a wooden case with an extra packing cost.
