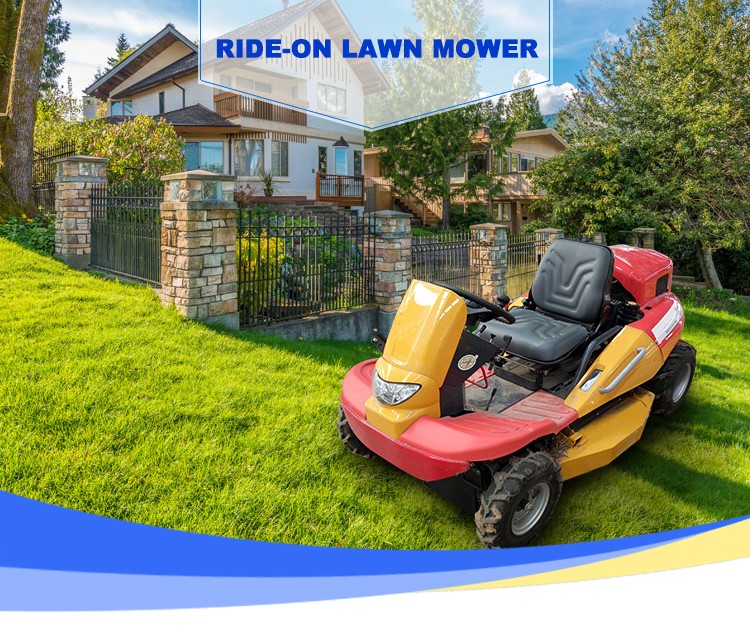

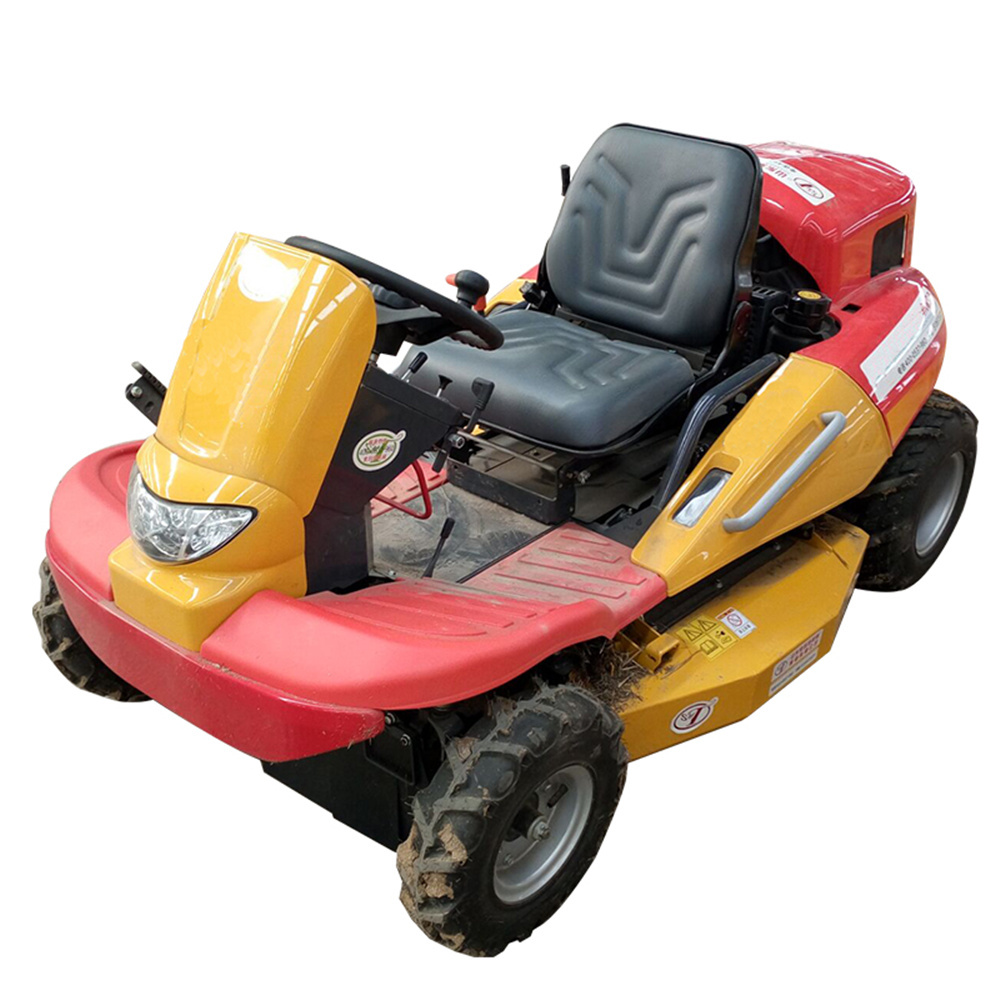

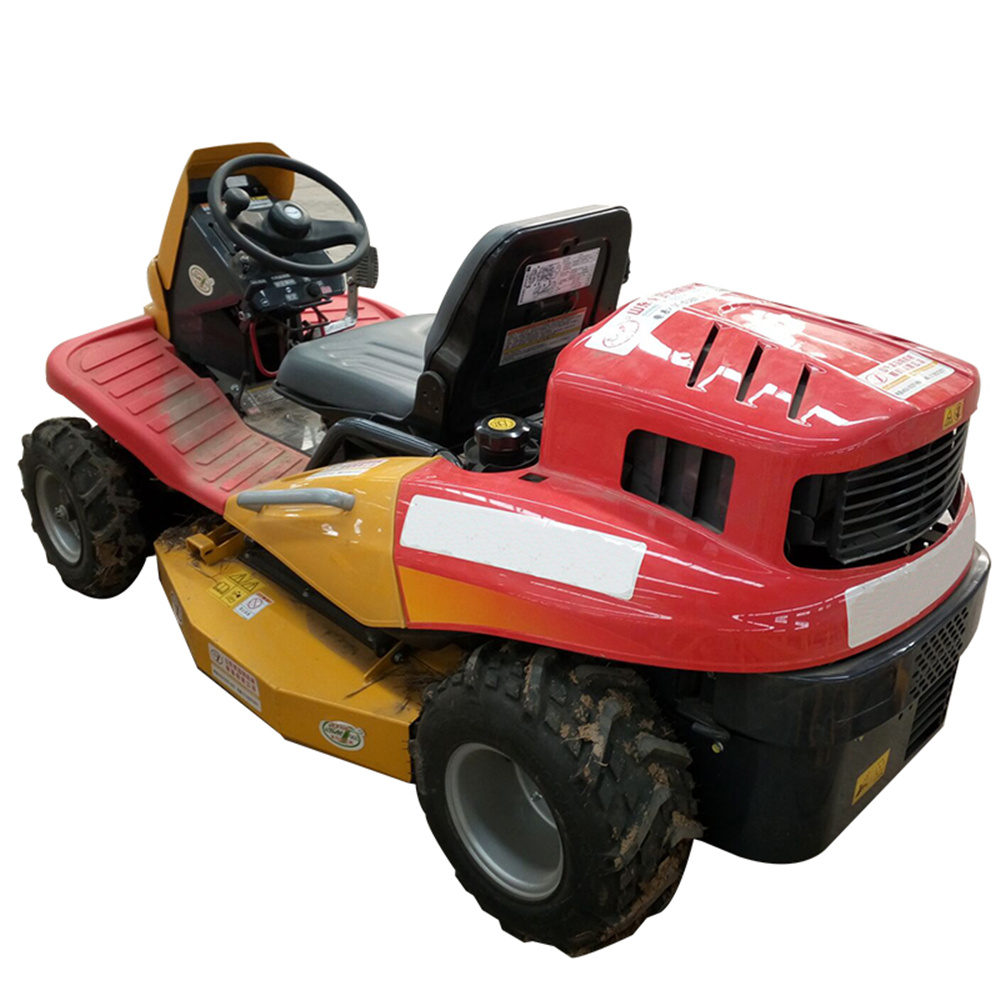

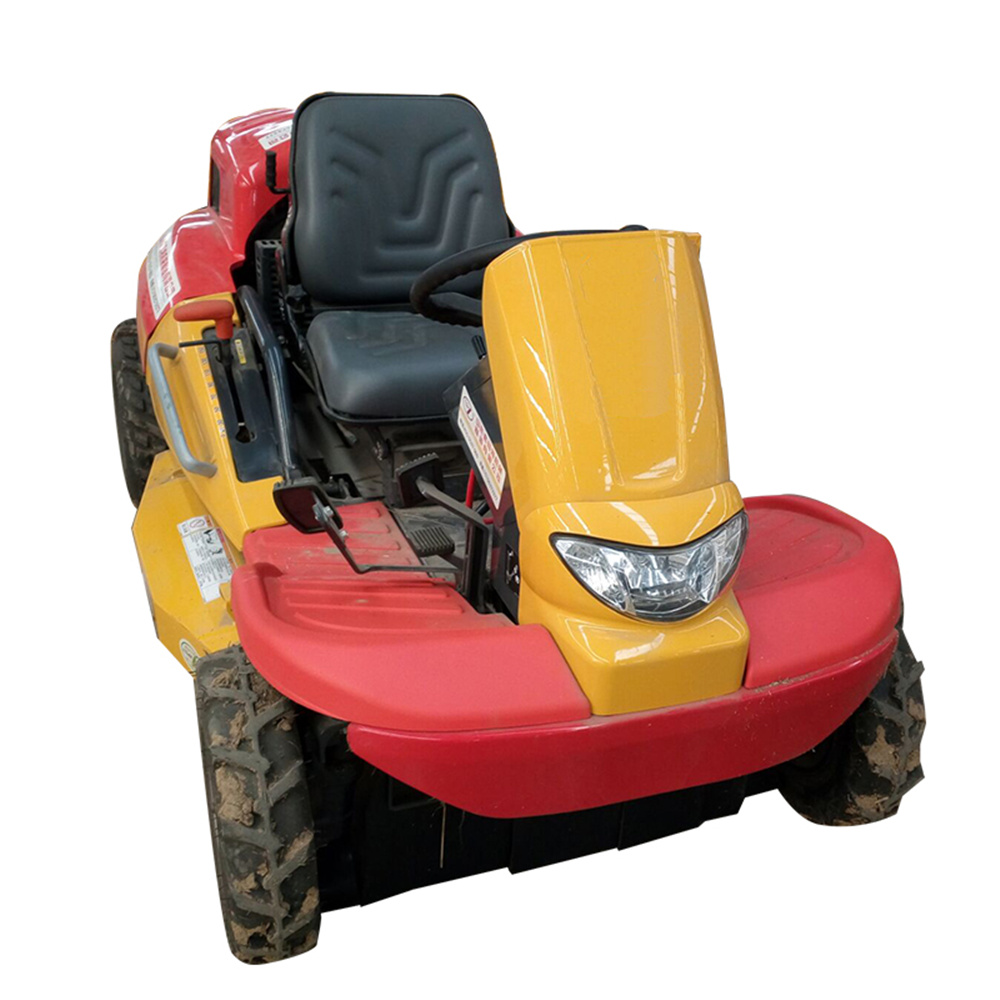

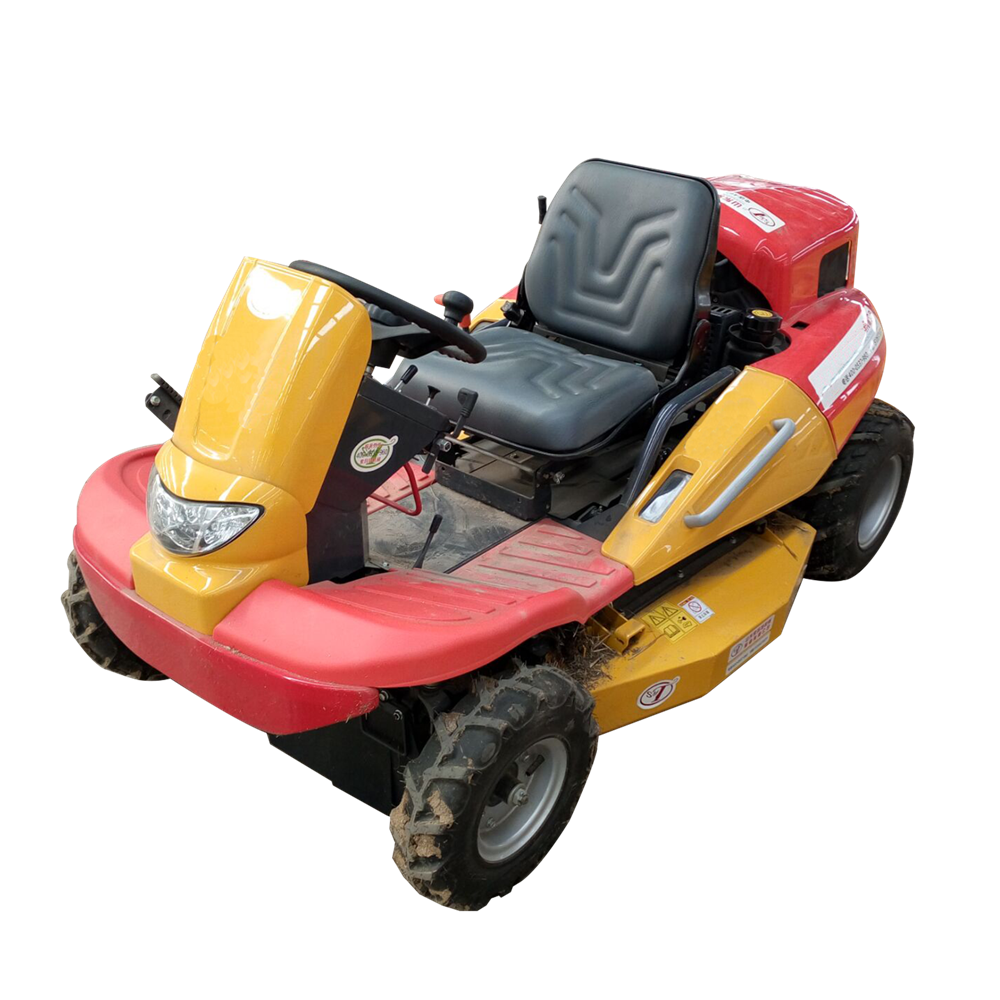

Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor

Product Description

Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor
Product Description
Ride On Lawn Mower / Lawn Tractor / Agriculture Ride On Lawn Tractor
Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor
Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor
Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor
Robin engine agriculture ride on lawn mower/lawn tractor
Technology Parameter
Model: HH-650
Body weight 345kg
Machine size Long 1947mm
Width 1020mm
High 860mm
Wheels Front and rear track 1300mm
Front track / rear wheel Before: 860 / After: 800
Tires Before: diameter 400mm, width 105mm
After: diameter 440mm, width 210mm
Engine Style Air-cooled 4-stroke V-2-cylinder overhead valve petrol engine
Maximum horsepower 16.4kw (22ps) 3600Kw(ps)/rpm
Fuel tank capacity 20L
Start mode Automatic
Use fuel Gasoline
Brake device Within the extended brake
Walking speed Transmission type HST (Continuously Variable)
Low speed 0 ~ 8.0km/h
High speed 0 ~ 14.0km/h
Minimum radius of gyration 1750mm
Gradeability 25°
Cutting device Cutting width 975mm
Cutting high 0 ~ 150mm
Cutting device type Freestyle & Segment
Operating efficiency 5000m²/h
Applications

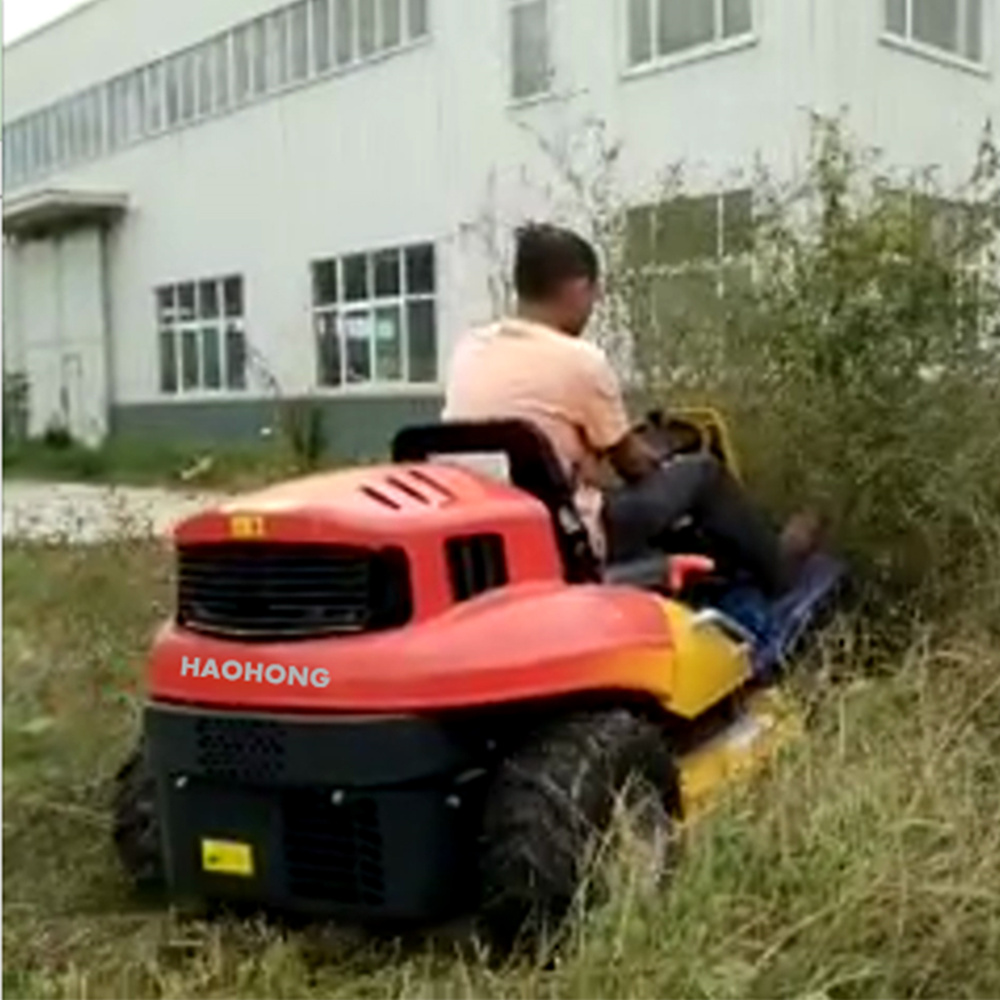

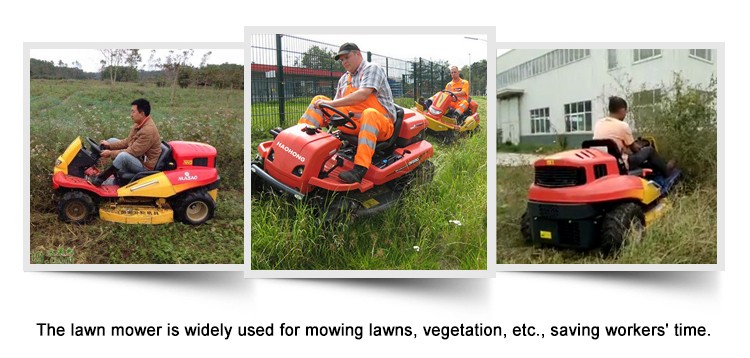

Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor Applications
Advantages

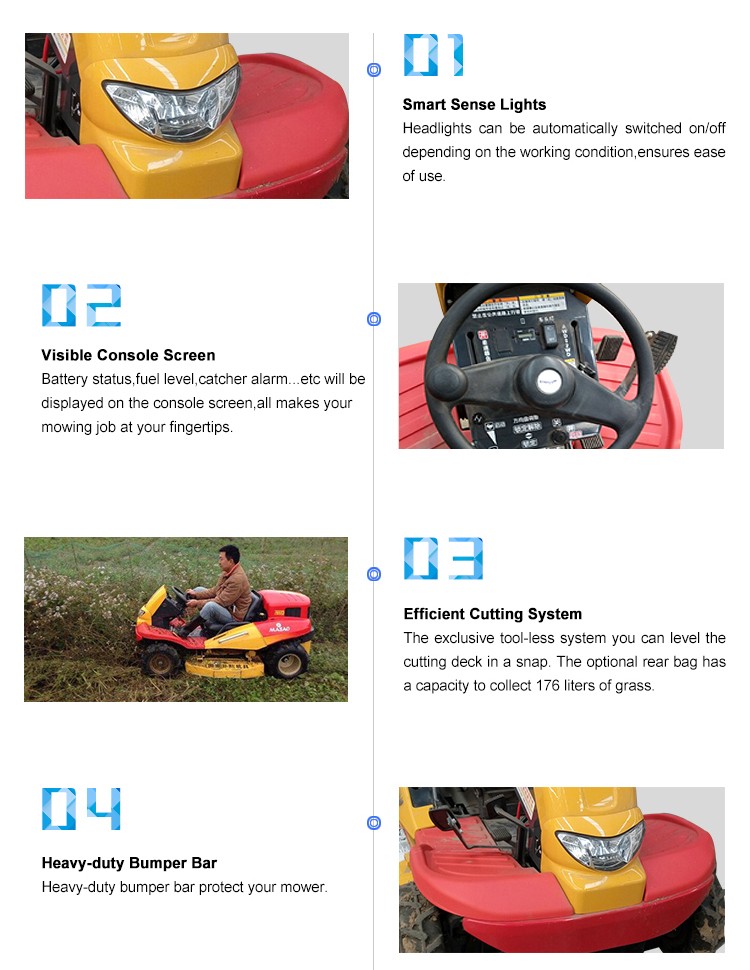

Robin Engine Agriculture Ride on Lawn Mower / Lawn Tractor Advantages
Packaging & Shipping
Packaging & Shipping Details
Payment Options
Payment Methods
About Us
About our operations

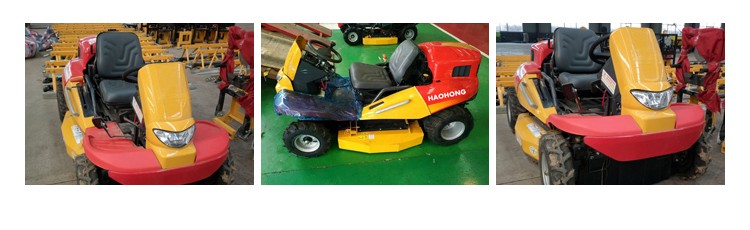

Factory Overview
Frequently Asked Questions (FAQ)
Q1: What engine is used in this ride-on lawn mower?

A1: This lawn tractor is powered by a high-performance Robin air-cooled 4-stroke V-2-cylinder overhead valve petrol engine, which delivers a maximum output of 16.4kW (22hp) at 3600 rpm.

Q2: How does the walking speed control function?

A2: The machine utilizes an HST (Hydrostatic Transmission) continuously variable transmission system. This provides a low-speed range of 0 to 8.0 km/h and a high-speed range of 0 to 14.0 km/h for flexible operations.

Q3: What are the cutting width and height options?

A3: The cutting system features a wide cutting path of 975mm. The cutting height can be adjusted from 0mm up to 150mm depending on the terrain and vegetation requirement.

Q4: Can this ride-on mower handle sloping terrains?

A4: Yes, the lawn tractor has a strong gradeability design, enabling it to climb slopes and operate safely on inclines up to 25°.

Q5: What is the operating efficiency of the HH-650 model?

A5: With its high horsepower and wide cutting mechanism, this ride-on mower achieves a work efficiency of up to 5,000 square meters per hour, making it highly effective for large-scale agricultural and landscaping tasks.

Q6: What fuel does the mower use, and what is its fuel tank capacity?

A6: The mower operates on regular gasoline and features a large fuel tank capacity of 20 liters, allowing for long operating periods without frequent refuelings.
